MILLING/INDEXABLE - MILLING/FACE MILLING CUTTERS/52700

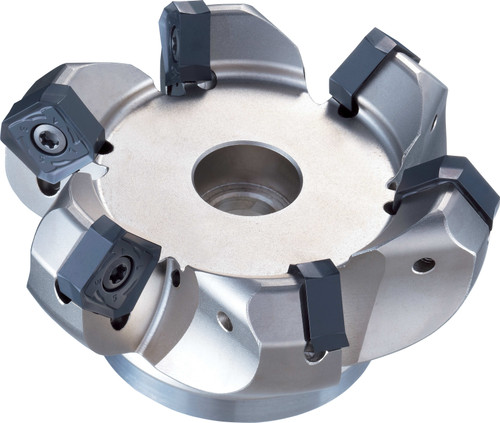

OSG PHOENIX PAS BORE

45 Degree indexable facemills with 2-sided square insert

EDP: 52700004
PAS15R500A150-8
Description
Indexable_-_Mill_-_Phoenix_PAS_-_List_52700_-_45_Face_Mill_Cutter_-_Catalog
Description
PHOENIX PAS is a series of 45° indexable facemills. Utilizing a 2-sided square insert, stable and economical rough and finish machining is possible in a wide range of materials.
Features & Benefits
Robust 2-sided square insert with 8 cutting edges (4 per side) Long insert life and low cost per edge
The combination of a positive chip breaker and the negative rake angle A strong and sharp cutting edge that reduces cutting forces and is capable of excellent surface finish.
Wiper edge geometry High precision surface finishing
Face mill style, Inch and Metric Complete Offering
Stocked
ALTERNATIVE PRODUCT
VIEW PRODUCT
Loading...

MOQ: 1

Add to List

Preview PDF

PDF generation may take time depending on details of the product.

Diameter - Inch (D)5.59
Bore Diameter - Inch (d3)1.5
Flange Diameter - Inch (D2)3.543
Effective Diameter - Inch (D1)5
Length of Cut - Inch (Lc)0.256
Body Height - Inch (H)2.48
SubstrateTOOL STEEL
Number of Flutes8
Applicable InsertSNKU15
Body TypeBore
Coolant ThruNo
Cutting DirectionRH
Keyway Depth - Inch (b)0.394
Keyway Width - Inch (a)0.625
Type2
UnitsInch
View Catalog PageHere
View Speed and Feed PageHere
DXF DrawingDownload
STP DrawingDownload
